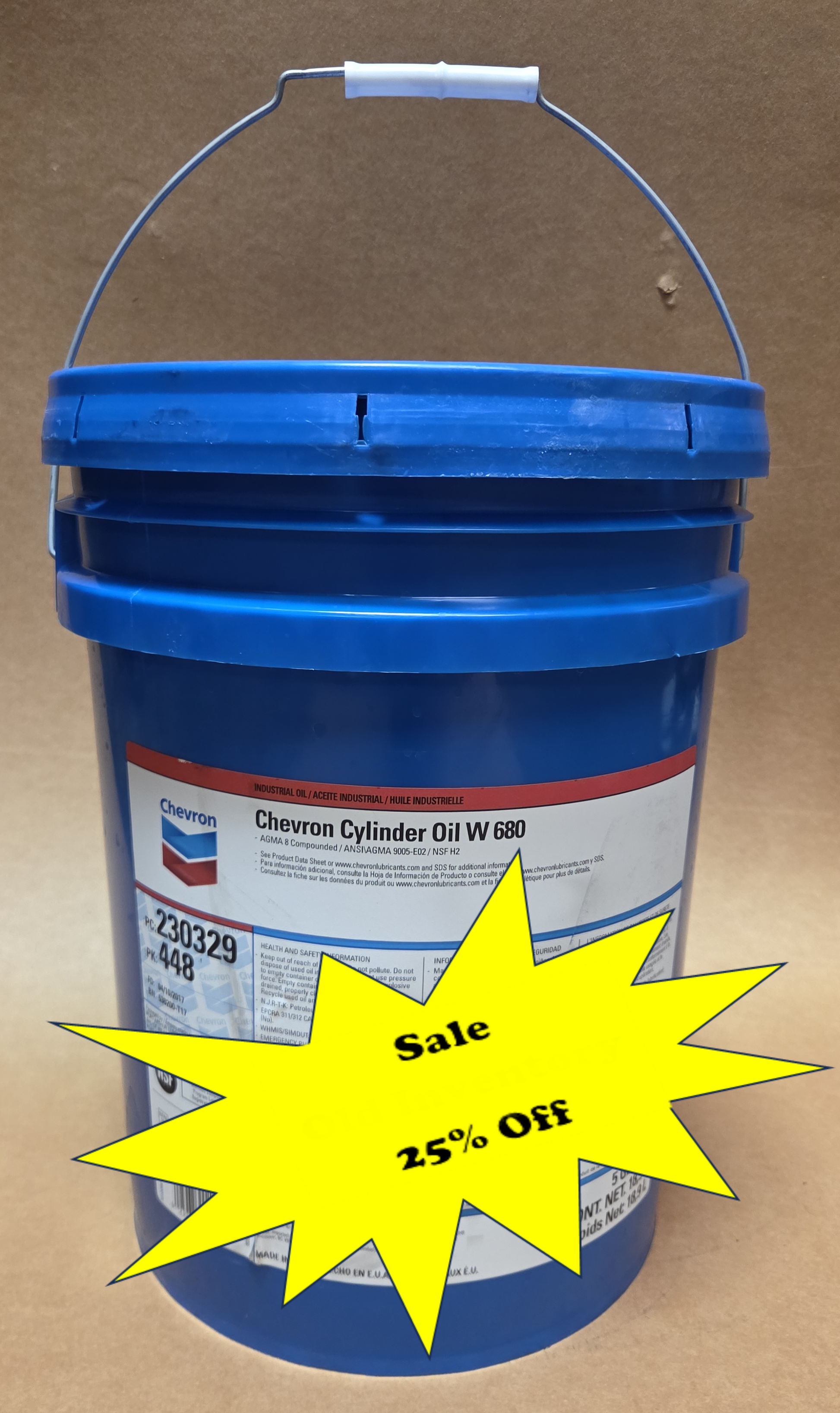

Chevron Cylinder Oil W680

Overstocked Inventory****Discounted While Supplies Last****

Product Description

Chevron Cylinder Oils W are recommended for lubrication of compressor cylinders and sliding worm gear surfaces in worm drive gear cases.

FEATURES

Chevron Cylinder Oils W are designed to meet the needs of emulsifying cylinder oils.

Chevron Cylinder Oils W help provide excellent metal wettability. The combination of oil emulsibility and metal wetting characteristics result in minimum oil consumption rates and maximum oil lubricity in the presence of wet steam or water.

The metal wetting helps ensure an effective lubricant film on the cylinder walls and pistons of steam pump, and also provides the oiliness properties which are extremely important in lubricating the sliding worm gear surfaces in worm drive gear cases.

Data Sheets

Product Data Sheet (PDS)

Safety Data Sheet (SDS)

 APPLICATIONS

Compressor manufacturers often recommend cylinder oils for compressor cylinder lubrication. The oiliness of
Chevron Cylinder Oils W promotes a metal wetting characteristic that resists the washing action of water and maintains a tenacious oil film on the surface of the compressor cylinder. The low viscosity of Chevron Cylinder Oil W 220 makes it suitable for this application in colder climates.

Chevron Cylinder Oil W 460 is recommended for moderate service applications where steam pressures will not exceed 150 psi and temperatures vary between 171°C to 204°C (340°F to 400°F).

Chevron Cylinder Oil W 680 is a higher viscosity lubricant recommended for steam pressures up to 300 psi and temperatures from 218°C to 302°C (425°F to 575°F).

Chevron Cylinder Oils W are ideal choices for worm gears.

Chevron Cylinder Oils W are recommended for use in underground brine pumps at geothermal power generation facilities.

Chevron Cylinder Oils W 220, 460, and 680 meet the requirements of ANSI/AGMA 9005-E02 for AGMA Lubricant Numbers 5, 7 Compounded, and 8 Compounded, respectively.
